Reliable Surveying Instruments

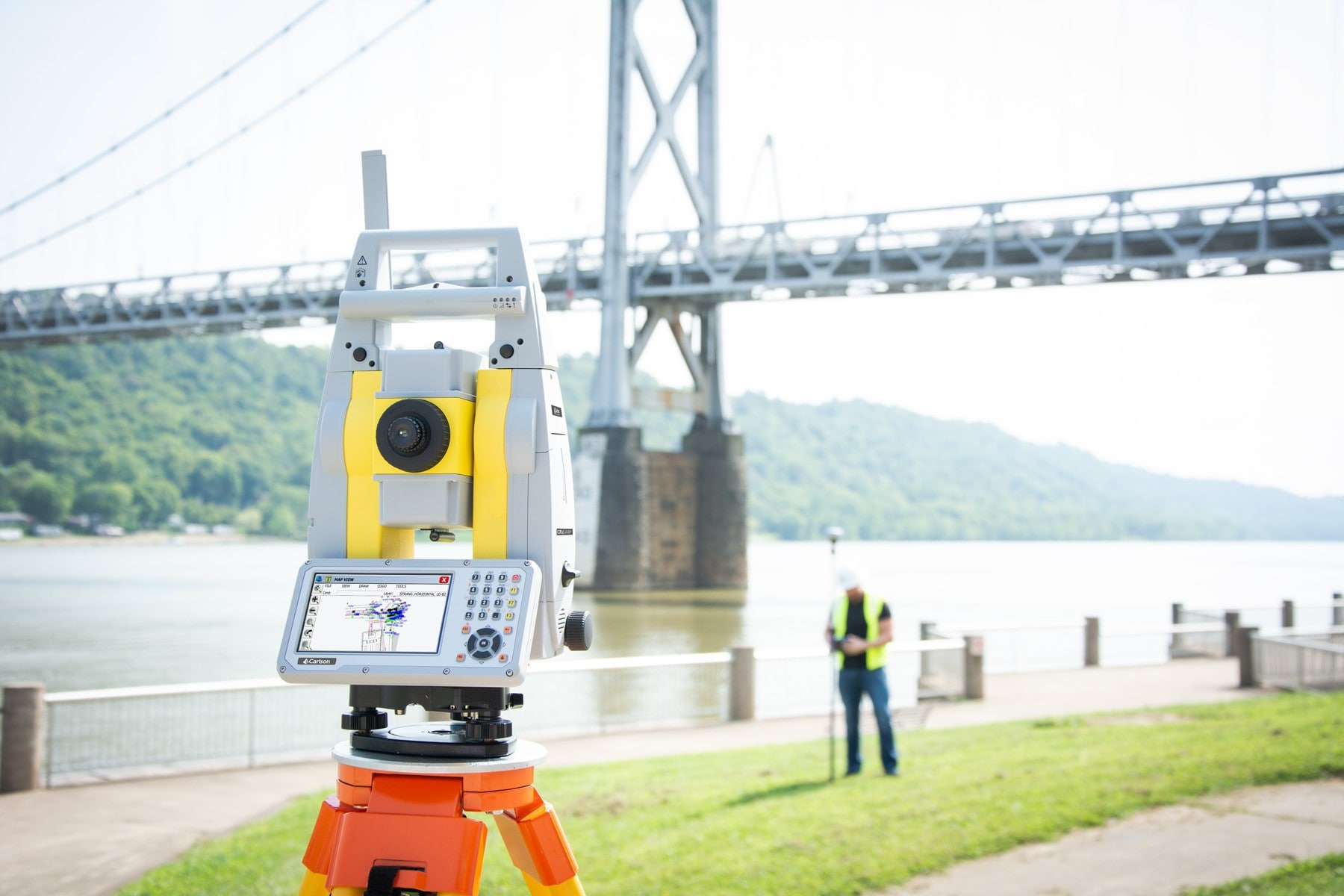

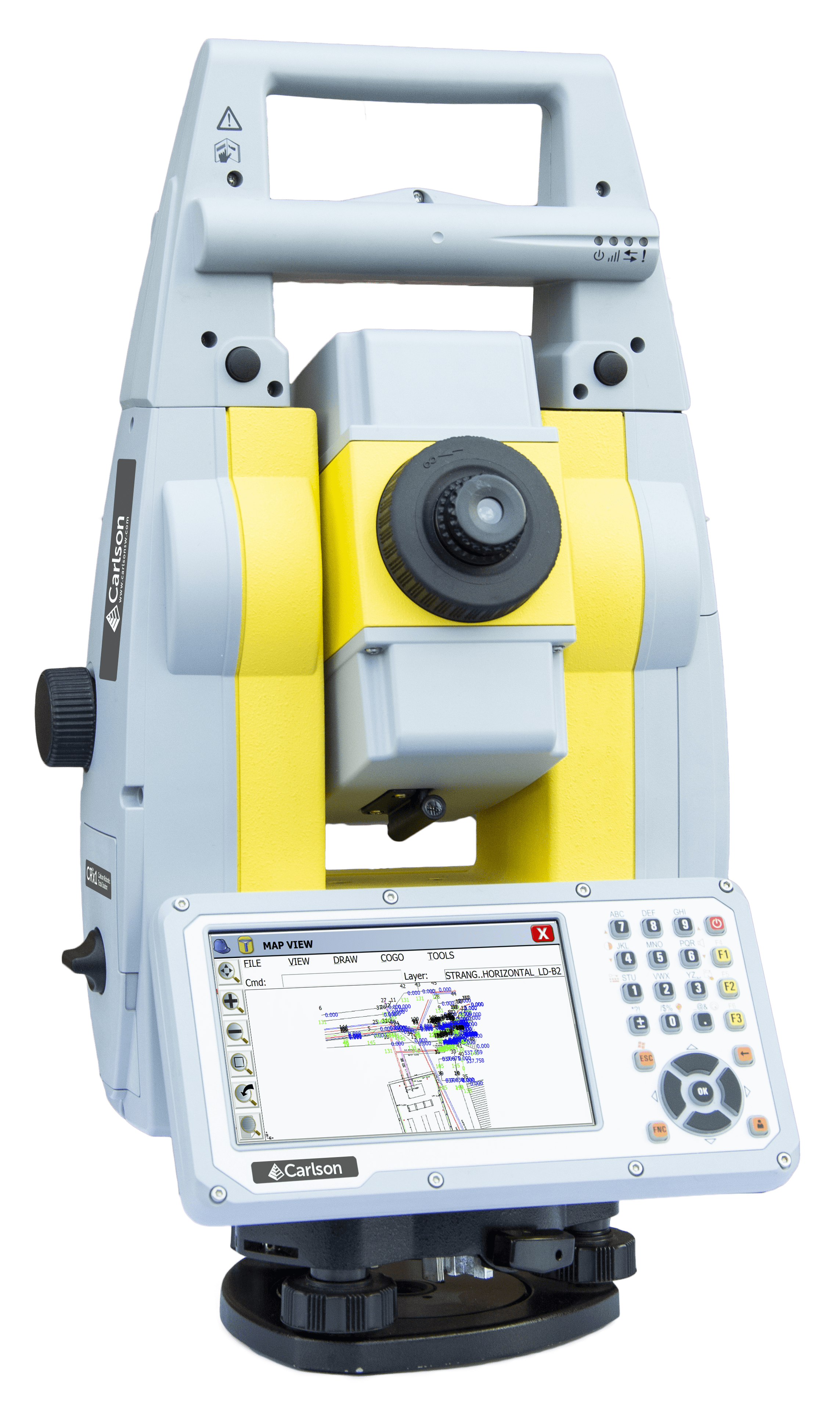

At Carlson Technology Solutions, we strive to make the job easier for those in the land surveying industry by providing them with surveying instruments. Rely on our smart devices and robotic total stations that improve the accuracy and efficiency of getting data or measuring angles and distances. These include the following:
.jpg "image title")
Carlson viking
Flagship GNSS Base/Rover or Network Rover
Advanced Technology
Utilizing TRIPLE-FIX technology, the America-built Carlson Viking is the ultimate solution for precision positioning in difficult environments. Used as either a base or a rover, the Viking system features a best-in-class GNSS antenna element and an integrated IMU offering centimeter-level accuracy, heightened flexibility, durability, and self-calibrating tilt compensation.
Advanced Technology for Every ChallengeAt its core, the Viking features the Gama RTK Navigation engine, paired with a sophisticated Web UI for effortless management and upgrades. Its innovative RTK Triple-Fix technology ensures high-fidelity positioning with virtually 100% reliability, guaranteeing precision in every task.Its ruggedized antenna is engineered for extreme conditions and meets IP67 standards, making it an ideal choice for demanding environments
.jpg "image title")
Carlson Viking Highlights
- American Made: Proudly assembled in Maysville Kentucky with components from USA and Europe, the Viking is completely Carlson designed and engineered
- Triple-Fix: Dual GNSS RTK modules and three separate RTK engines, providing not just exceptional horizontal and vertical accuracy, but essentially eliminating false fixes
- Tilt Compensation: Industry-leading, calibration-free tilt compensation delivers impressive precision even when surveying at up to 60° of inclination
- Best GNSS antenna element:Highest accuracy even when tilting at high angles, excellent multipath rejection, accurate and stable antenna phase center
- Dual hot-swappable batteries: 12+ hours of runtime and the flexibility to charge batteries in-unit with USB-C or with included dual bay charge
- Rugged & ready: IP67-rated, MIL-STD-810G tested
- Highly resilient Best in class anti-jamming and anti-spoofing
- Versatile & efficient: Use as a base or a rover with communication options including 400 & 900 MHz radio, internal mobile data modem, Bluetooth, and Wi-Fi
- Carlson SurvPC: The Viking seamlessly integrates with Carlson SurvPC and Layout field software, and features a powerful web-based UI for remote setup and monitoring
Cutting-Edge Performance and Connectivity
The Viking supports 632 channels, enabling simultaneous tracking of all major satellite constellations, including GPS, GLONASS, BeiDou, Galileo, QZSS, and NavIC (IRNSS).
Equipped with a 4G cellular modem and UHF radio, the Viking ensures robust internet connectivity and reliable RTK data transmission. Configure it as either a Rover or Base Station, providing unmatched flexibility.
Contact us to learn about our current specials.
Carlson BRx7 GNSS Rover or Receiver
The BRx7 is Carlson Technology Solutions’ all-new multi-GNSS, multifrequency smart antenna. It delivers robust performance and high precision in a compact, rugged package with tilt compensation ability. Due to its multiple wireless communication ports and open GNSS interface, the BRx7 may be used in various operating modes.
Key Features
- Multi-Frequency GPS, GLONASS, BeiDou, Galileo, QZSS, IRNSS, and Atlas L-Band
- Long-Range RTK Baselines Up to 50 km With Fast Acquisition Times With the Use of Listen-Listen**
- UHF (400 MHz and 900 MHz), Cellular, Bluetooth®, and Wi-Fi® Wireless Communication
- BRx7 Athena GNSS Engine That Provides Best-in-Class RTK Performance
- Internal Tilt Sensor That Corrects Collected Point Coordinates to Within 2 cm
